Hand insert embryo full automatic bottle ...

Description
-----------------------------------------------------------------------------------------------------------------

1) high speed and efficiency: the new product model is equivalent to the original two to three sets of semi automatic machine efficiency.
2). Labor: new models of single operation, saving 2 to 3 people in the labor force.
3). The main performance and the slide type integration. Maintenance is simple.
4. Imported touch screen man-machine interface computer, with the performance of fine, fast, strong stability.
5) selection of Germany, Japan, Taiwan imported pneumatic components, to ensure that the high-speed operation of zero failure rate.
6). Gas blowing and action design is divided into two parts, in order to meet the needs of the different pressure of the blowing bottle, action, achieve high pressure blowing products, the double elbow, the main connecting rod hinge clamping force is strong, with high pressure bottle blowing machine when the clamping pressure function, steady and reliable action.
7). Mold moving parts with high-speed rail line, with high wear resistance, high speed mold light and no vibration etc...

Parameter
-----------------------------------------------------------------------------------------------------------------

Name Unit JG-1C5L JG-2C2L JG-1C120MM JG-2C120MM JG-1C20L
Theoretical yield pcs/hr 750 2500 800 1500 180
Bottle maximum capacity L 5 2 8 8 20
The maximum diameter of the bottle mm 50 45 120 120 100
Bottle Max diameter mm 175 100 200 200 300
Maximum height of bottle mm 350 340 350 350 450
Cavity number cavity 1 2 1 2 1
Installed capacity kw 28 28 42
Rated power of heating kw 27 27 40
Actual heating power kw 15 15 28
Machine size mm 1900*1400*2000 1900*1600*2200 3400*2100*2200
Machine weight kg 1800 1800 2800

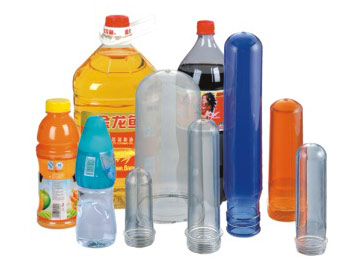

Application
-----------------------------------------------------------------------------------------------------------------
