Scope:

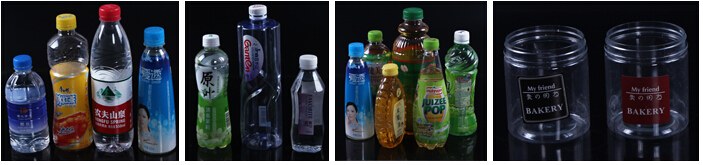

Assorted bottles, oil bottles, soda bottles, mineral water bottles, wine bottles, medicine bottles, bottles, cans and other chemical tennis.

Using a new type of double crank five four support rods and die structure (or national patent), the cross direction, in the template for balanced operation, chain transfer mode, the hinge components used are inlaid with high hardness alloy steel sleeve and high hardness alloy shaft, the large clamping force, abrasion resistance, fine and tight clamping seam. The whole casting machine frame, enhance the stability and stability of the whole machine. Moving template using linear guide rail. Remove old bearing bracket. The friction between the draw rod and the template is greatly reduced, and the service life of the machine is prolonged. Double start work, using photoelectric safety protection device to prevent injury. Energy saving design, can make the production more benefit. Put the bottle blank and special one-way one-way function, which takes the bottle, put two action crisp, increasing production capacity. Isolated air control system to prevent the emission of pollution, to achieve health inspection standards. The front and back, the left and right direction of the machine head (stretching cylinder) are adopted in parallel regulation mode, and the mould installation is more convenient and quick.

DY-1200A 成型组规格MOLDING 合模力 Clamping force kg 13000 模具行程 Clamping stroke mm 155 拉杆行程 Stretching stroke mm 370 底模行程 Bottom Stroke mm / 瓶子间距 Cavity pitch mm 130 模穴数 Number of Cavity Cavities 2 瓶型规格CONTAINER 瓶子最大容量 Max.container volume itr 3 最大牙部尺寸 Neck diameter range mm 10-120 最大瓶身直径 Max.container diameter mm 130 最大瓶身高度 Max.container height mm 350 胚头数 Carriage unit pcs 72 理论产能 THEORETICAL OUTPUT bph 1200 电力规格 ELECTRICAL SYSTEM 总耗电量 Total power kw 17 加热功率 Heating power kw 16 灯管配置 Max.heating power kw 8 空压规格 AIRSYSTEM 操作压力 Operating pressure kg/cm2 7 低压耗气量 Air consuming Itr/min 600 吹瓶压力 Blowing pressure kg/cm2 25 高压耗气量 Air consuming Itr/min 800 冷冻机规格 AIR DRYER 操作压力 Operating pressure kg/cm2 2~4 温度范围 Temperature 10~12 消耗量 Consuming kcal/hr 2000 流量 Flow rate Itr/min 30 冷却水规格 WATER CHILLER 操作压力 Operating pressure kg/cm2 2~4 温度范围 Temperature 30 消耗量 Consuming kcal/hr 10000 流量 Flow rate Itr/min 130 机台规格 MACHINE 机台尺寸 Machine size mm 1650-650-1700 机台重量 Machine weight kg 600 备注   REMARKS 1.以生产0.6L瓶的基本耗气量。 All data standard infication for0.6L bottle.  2.最终产能需依据瓶胚及瓶型而定。The actual output depends on the preform quality and boltte shape.  3. 规格有变更，恕不另行通知。Specifications are subject to change without notice.  4.请提供稳定的环境温度。 Please provide the stable ambient temperature. Application -----------------------------------------------------------------------------------------------------------------
