Semi automatic 1.5L- high temperature resistance

Description

-----------------------------------------------------------------------------------------------------------------

Scope:

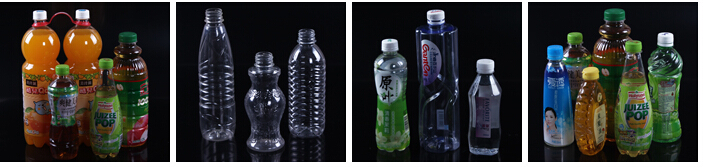

Assorted bottles, oil bottles, soda bottles, mineral water bottles, wine bottles, medicine bottles, bottles, cans and other chemical tennis.

Parameter

-----------------------------------------------------------------------------------------------------------------

				DY-1200N
成型组规格 MOLDING	合模力	Clamping force	kg	13000
	模具行程	Clamping stroke	mm	155
	拉杆行程	Stretching stroke	mm	370
	底模行程	Bottom Stroke	mm	/
	瓶子间距	Cavity pitch	mm	130
	模穴数	Number of Cavity	Cavities	2
瓶型规格 CONTAINER	瓶子最大容量	Max.container volume	itr	1.5
	最大牙部尺寸	Neck diameter range	mm	10-120
	最大瓶身直径	Max.container diameter	mm	90
	最大瓶身高度	Max.container height	mm	350
	胚头数	Carriage unit	pcs	72
理论产能	THEORETICAL OUTPUT		bph	600
电力规格 ELECTRICAL SYSTEM	总耗电量	Total power	kw	17
	加热功率	Heating power	kw	16
	灯管配置	Max.heating power	kw	10
空压规格 AIRSYSTEM	操作压力	Operating pressure	kg/cm2	7
	低压耗气量	Air consuming	Itr/min	600
	吹瓶压力	Blowing pressure	kg/cm2	25
	高压耗气量	Air consuming	Itr/min	1500
冷冻机规格 AIR DRYER	操作压力	Operating pressure	kg/cm2	2-4
	温度范围	Temperature		10-12
	消耗量	Consuming	kcal/hr	2000
	流量	Flow rate	Itr/min	30
冷却水规格 WATER CHILLER	操作压力	Operating pressure	kg/cm2	2-4
	温度范围	Temperature		30
	消耗量	Consuming	kcal/hr	10000
	流量	Flow rate	Itr/min	130
机台规格 MACHINE	机台尺寸	Machine size	mm	1650-650-1700
机台规格 MACHINE	机台重量	Machine weight	kg	600
备注 REMARKS	1.以生产0.6L瓶的基本耗气量。 All data standard infication for0.6L bottle. 2.最终产能需依据瓶胚及瓶型而定。The actual output depends on the preform quality and boltte shape. 3. 规格有变更，恕不另行通知。Specifications are subject to change without notice. 4.请提供稳定的环境温度。 Please provide the stable ambient temperature.

Application

-----------------------------------------------------------------------------------------------------------------
