Scope:
Assorted bottles, oil bottles, soda bottles, mineral water bottles, wine bottles, medicine bottles, bottles, cans and other chemical tennis.
Typical:
-----------------------------------------------------------------------------------------------------------------
DY-500 semi automatic 5 liter bottle blowing machine can according to different types of bottles required by the user and the choice of different caliber, blowing mould, blowing capacity of 5L within various kinds of wine, drink, soy sauce, oil, soy milk, pesticide bottles of PET central container, the machine has high degree of automation, high production efficiency and safety reliable, using infrared rotary heating, overvoltage, overcurrent protection, speed and high precision, no noise, low power consumption, convenient operation and maintenance, is the ideal equipment for the production of PET bottle industry.
Parameter
-----------------------------------------------------------------------------------------------------------------
|
|
|
|
DY-500 |
成型组规格
MOLDING |
合模力 |
Clamping force |
kg |
25000 |
| 模具行程 |
Clamping stroke |
mm |
220 |
| 拉杆行程 |
Stretching stroke |
mm |
400 |
| 底模行程 |
Bottom Stroke |
mm |
/ |
| 瓶子间距 |
Cavity pitch |
mm |
/ |
| 模穴数 |
Number of Cavity |
Cavities |
1 |
瓶型规格
CONTAINER |
瓶子最大容量 |
Max.container volume |
itr |
6 |
| 最大牙部尺寸 |
Neck diameter range |
mm |
10-120 |
| 最大瓶身直径 |
Max.container diameter |
mm |
200 |
| 最大瓶身高度 |
Max.container height |
mm |
380 |
| 胚头数 |
Carriage unit |
pcs |
72 |
| 理论产能 |
THEORETICAL OUTPUT |
bph |
500 |
电力规格
ELECTRICAL SYSTEM |
总耗电量 |
Total power |
kw |
17 |
| 加热功率 |
Heating power |
kw |
16 |
| 灯管配置 |
Max.heating power |
kw |
10 |
空压规格
AIRSYSTEM |
操作压力 |
Operating pressure |
kg/cm2 |
7 |
| 低压耗气量 |
Air consuming |
Itr/min |
600 |
| 吹瓶压力 |
Blowing pressure |
kg/cm2 |
25 |
| 高压耗气量 |
Air consuming |
Itr/min |
1200 |
冷冻机规格
AIR DRYER |
操作压力 |
Operating pressure |
kg/cm2 |
2-4 |
| 温度范围 |
Temperature |
|
10-12 |
| 消耗量 |
Consuming |
kcal/hr |
2000 |
| 流量 |
Flow rate |
Itr/min |
30 |
| 冷却水规格 WATER CHILLER |
操作压力 |
Operating pressure |
kg/cm2 |
2-4 |
| 温度范围 |
Temperature |
|
30 |
| 消耗量 |
Consuming |
kcal/hr |
10000 |
| 流量 |
Flow rate |
Itr/min |
130 |
机台规格
MACHINE |
机台尺寸 |
Machine size |
mm |
1850-650-1850 |
| 机台重量 |
Machine weight |
kg |
1100 |
备注
REMARKS |
1.以生产0.6L瓶的基本耗气量。 All data standard infication for0.6L bottle.
2.最终产能需依据瓶胚及瓶型而定。The actual output depends on the preform quality and boltte shape.
3. 规格有变更，恕不另行通知。Specifications are subject to change without notice.
4.请提供稳定的环境温度。 Please provide the stable ambient temperature. |
|

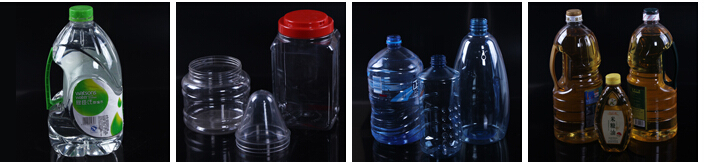

Application
-----------------------------------------------------------------------------------------------------------------
